Pinarello Dogma F Disc - Frameset - 2024
$6,950.00
Details
THE ART OF BALANCE.

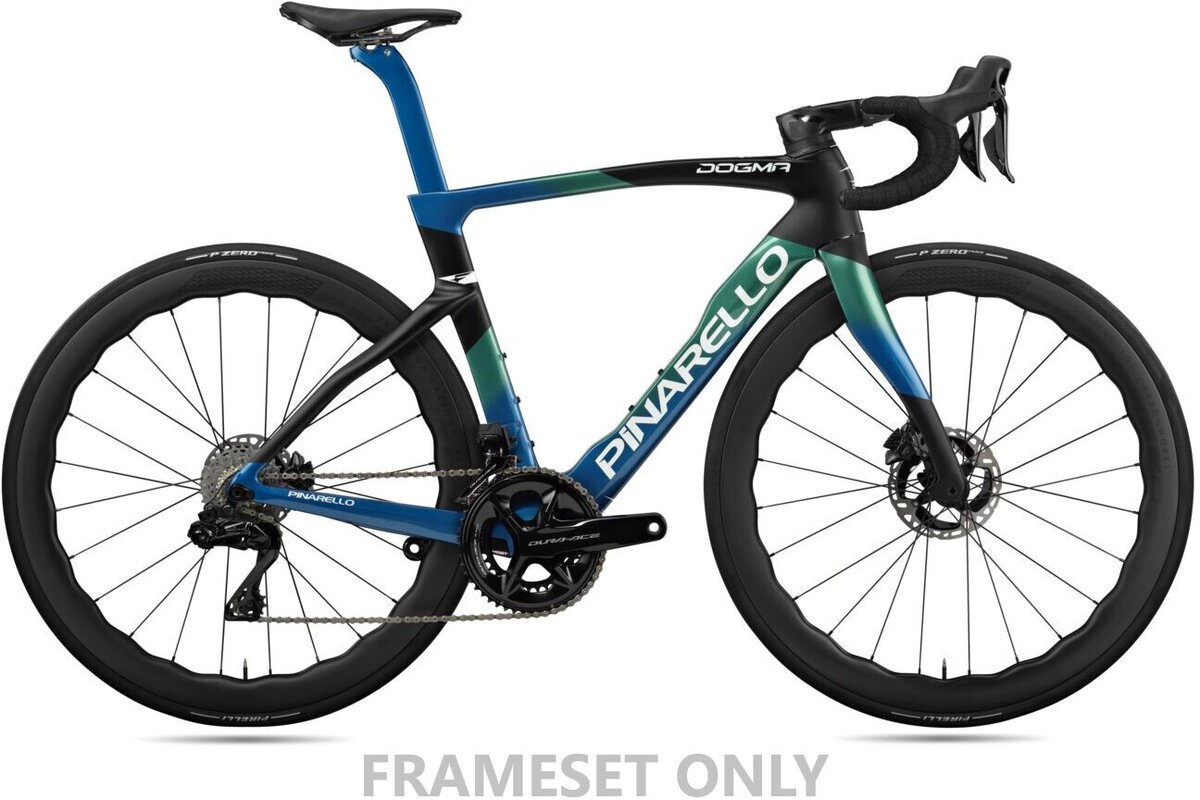

This is the culmination of all of our skill and experience, a masterpiece of engineering that offers advancements in handling, comfort, and aerodynamics all wrapped in a package that can climb, descend, and sprint with equal flair. Whatever the road throws at you, the DOGMA F is always the right bike. PHOTO FOR COLOR REFERENCE ONLY.
CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK
| CE | CC | L | A [°] | B [°] | P | T | D | R | G | Reach | Stack |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 430 | 500 | 74.4 | 69.5 | 406 | 97 | 67 | 43 | 373 | 351.4 | 502.4 |
| 450 | 465 | 515 | 74.4 | 70.5 | 406 | 104 | 72 | 43 | 373 | 364.8 | 517.6 |
| 465 | 500 | 525 | 74 | 71.4 | 406 | 109 | 72 | 43 | 373 | 372.1 | 525.4 |
| 485 | 515 | 535 | 73.7 | 72 | 406 | 114 | 72 | 43 | 373 | 378 | 532.3 |
| 500 | 530 | 545 | 73.7 | 72.5 | 406 | 123 | 72 | 43 | 373 | 383.3 | 542.6 |
| 510 | 540 | 550 | 73.4 | 72.8 | 408 | 131 | 72 | 43 | 373 | 385 | 551.2 |
| 520 | 550 | 557 | 73.4 | 72.8 | 408 | 142 | 72 | 43 | 373 | 388.8 | 561.6 |
| 525 | 560 | 565 | 73 | 73.2 | 408 | 149.5 | 72 | 43 | 373 | 390.7 | 570.2 |
| 540 | 575 | 575 | 73 | 73.7 | 408 | 163 | 72 | 43 | 373 | 396.7 | 584.8 |
| 560 | 595 | 587 | 72.4 | 73.4 | 408 | 199 | 67 | 43 | 373 | 393.3 | 613.3 |
| 600 | 620 | 620 | 72 | 73.4 | 411 | 239 | 67 | 43 | 373 | 410.1 | 651.7 |
Specs
| Frame | TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR™ cable routing, Italian BB, UCI approved |
|---|---|
| Fork | F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, Ultra Light Headset bearings |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Nebula Green Blue / 43cm | 836577000514 | PI-24-FDSC-43-GRBL |
| Nebula Green Blue / 59.5cm | 842552000035 | PI-24-FDSC-59-GRBL |
| Nebula Green Blue / 62cm | 842568000500 | PI-24-FDSC-62-GRBL |
| Nebula Green Blue / 46.5cm | 836577000521 | PI-24-FDSC-46-GRBL |
| Nebula Green Blue / 50cm | 838452002248 | PI-24-FDSC-50-GRBL |
| Nebula Green Blue / 51.5cm | 838452002637 | PI-24-FDSC-51-GRBL |
| Nebula Green Blue / 53cm | 838452003368 | PI-24-FDSC-53-GRBL |
| Nebula Green Blue / 54cm | 840857002587 | PI-24-FDSC-54-GRBL |
| Nebula Green Blue / 55cm | 842303012980 | PI-24-FDSC-55-GRBL |
| Nebula Green Blue / 56cm | 842552000011 | PI-24-FDSC-56-GRBL |
| Nebula Green Blue / 57.5cm | 842552000028 | PI-24-FDSC-57-GRBL |
| Nebula Sun / 43cm | 829173091680 | PI-24-FDSC-43-SUN |
| Nebula Sun / 59.5cm | 836577000347 | PI-24-FDSC-59-SUN |
| Nebula Sun / 62cm | 836577000354 | PI-24-FDSC-62-SUN |
| Nebula Sun / 46.5cm | 829274513753 | PI-24-FDSC-46-SUN |
| Nebula Sun / 50cm | 829274514224 | PI-24-FDSC-50-SUN |
| Nebula Sun / 51.5cm | 829274514255 | PI-24-FDSC-51-SUN |
| Nebula Sun / 53cm | 829535999418 | PI-24-FDSC-53-SUN |
| Nebula Sun / 54cm | 831895003155 | PI-24-FDSC-54-SUN |
| Nebula Sun / 55cm | 833626005414 | PI-24-FDSC-55-SUN |
| Nebula Sun / 56cm | 834211005390 | PI-24-FDSC-56-SUN |
| Nebula Sun / 57.5cm | 836577000200 | PI-24-FDSC-57-SUN |
| Sonic Blue / 59.5cm | 852311004037 | PI-24-FDSC-59-SOBL |
| Sonic Blue / 62cm | 852311004273 | PI-24-FDSC-62-SOBL |
| Sonic Blue / 46.5cm | 849607011183 | PI-24-FDSC-46-SOBL |
| Sonic Blue / 50cm | 849991000046 | PI-24-FDSC-50-SOBL |
| Sonic Blue / 51.5cm | 850067000754 | PI-24-FDSC-51-SOBL |
| Sonic Blue / 53cm | 850230006026 | PI-24-FDSC-53-SOBL |
| Sonic Blue / 54cm | 851626003018 | PI-24-FDSC-54-SOBL |
| Sonic Blue / 55cm | 851683004324 | PI-24-FDSC-55-SOBL |
| Sonic Blue / 56cm | 851919003275 | PI-24-FDSC-56-SOBL |
| Sonic Blue / 57.5cm | 852311004013 | PI-24-FDSC-57-SOBL |
| Sonic Green / 59.5cm | 848447012572 | PI-24-FDSC-59-SOGR |
| Sonic Green / 46.5cm | 845346000150 | PI-24-FDSC-46-SOGR |
| Sonic Green / 50cm | 845346000167 | PI-24-FDSC-50-SOGR |
| Sonic Green / 51.5cm | 845346000402 | PI-24-FDSC-51-SOGR |
| Sonic Green / 53cm | 845970090015 | PI-24-FDSC-53-SOGR |
| Sonic Green / 54cm | 846005000573 | PI-24-FDSC-54-SOGR |
| Sonic Green / 55cm | 846005000665 | PI-24-FDSC-55-SOGR |
| Sonic Green / 56cm | 846036001563 | PI-24-FDSC-56-SOGR |
| Sonic Green / 57.5cm | 848192012353 | PI-24-FDSC-57-SOGR |
| Sonic Red / 46.5cm | 842646020109 | PI-24-FDSC-46-SORD |
| Sonic Red / 50cm | 842918001362 | PI-24-FDSC-50-SORD |
| Sonic Red / 56cm | 845027750862 | PI-24-FDSC-56-SORD |
| Speedster BoB / 43cm | 852403000237 | PI-24-FDSC-43-SBOB |
| Speedster BoB / 59.5cm | 852403000381 | PI-24-FDSC-59-SBOB |
| Speedster BoB / 62cm | 852453003066 | PI-24-FDSC-62-SBOB |
| Speedster BoB / 46.5cm | 852403000299 | PI-24-FDSC-46-SBOB |
| Speedster BoB / 50cm | 852403000336 | PI-24-FDSC-50-SBOB |
| Speedster BoB / 51.5cm | 852403000343 | PI-24-FDSC-51-SBOB |
| Speedster White / 43cm | 852403000015 | PI-24-FDSC-43-SPWH |
| Speedster White / 59.5cm | 852403000176 | PI-24-FDSC-59-SPWH |
| Speedster White / 62cm | 852403000213 | PI-24-FDSC-62-SPWH |
| Speedster White / 46.5cm | 852403000022 | PI-24-FDSC-46-SPWH |
| Speedster White / 50cm | 852403000039 | PI-24-FDSC-50-SPWH |
| Speedster White / 51.5cm | 852403000046 | PI-24-FDSC-51-SPWH |
| Speedster White / 53cm | 852403000060 | PI-24-FDSC-53-SPWH |
| Speedster White / 54cm | 852403000121 | PI-24-FDSC-54-SPWH |
| Speedster White / 55cm | 852403000138 | PI-24-FDSC-55-SPWH |
| Speedster White / 56cm | 852403000145 | PI-24-FDSC-56-SPWH |
| Speedster White / 57.5cm | 852403000169 | PI-24-FDSC-57-SPWH |
