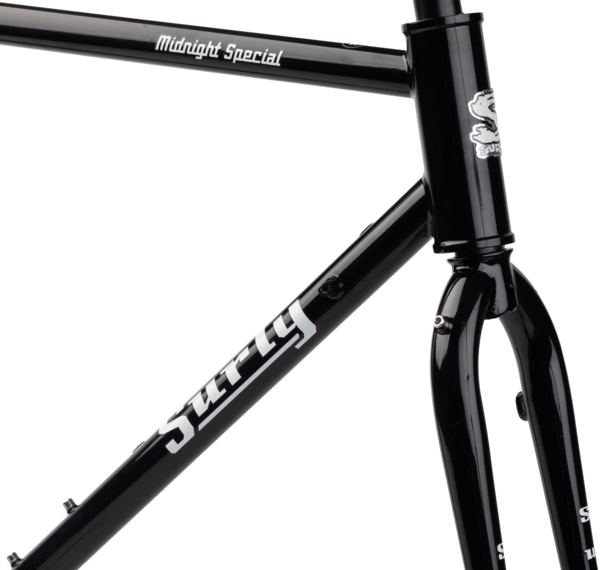

Surly Midnight Special Frameset
This item is currently not available.
Details
The Midnight Special is an endurance road bike designed to provide comfort and speed on those all-day rides that extend well beyond fresh pavement. It excels on pot-holed, deteriorating pavement and the occasional long stretch of gravel. The Midnight Special’s 700c tires eat up road chatter and absorb all the bumps in the road for a much more comfortable ride.
- 100% Surly Chromoly frame, main triangle is double-butted; 1-1/8" threadless Chromoly fork
- Rack, fender, and three sets of water bottle mounts
- Flat-Mount disc brakes
- 44mm head tube
- Tire Clearance: 27.5 x 2.35" (w/o fenders), 700c x 42mm (w/o fenders), 650b x 50 (w/ fenders), 700c x 38mm (w/ fenders)
| Frame Size | 40cm | 46cm | 50cm | 54cm | 56cm | 58cm | 60cm | 64cm |
|---|---|---|---|---|---|---|---|---|
| Effective top tube (cm / in) | 50.0 / 19.69 | 52.0 / 20.47 | 54.0 / 21.26 | 55.5 / 21.85 | 57.0 / 22.44 | 58.5 / 23.03 | 60.5 / 23.82 | 62.5 / 24.61 |
| Standover (cm / in) | 72.0 / 28.35 | 75.1 / 29.57 | 77.8 / 30.63 | 80.6 / 31.73 | 82.7 / 32.56 | 84.6 / 33.31 | 86.6 / 34.09 | 89.5 / 35.24 |
| Reach (cm / in) | 36.3 / 14.29 | 36.6 / 14.41 | 37.9 / 14.92 | 38.9 / 15.31 | 39.3 / 15.47 | 40.2 / 15.83 | 40.9 / 16.10 | 42.3 / 16.65 |
| Stack (cm / in) | 53.1 / 20.91 | 53.8 / 21.18 | 54.4 / 21.42 | 56.0 / 22.05 | 58.0 / 22.83 | 59.9 / 23.58 | 62.0 / 24.41 | 64.1 / 25.24 |
| Seat tube length (cm / in) | 40.0 / 15.75 | 46.0 / 18.11 | 50.0 / 19.69 | 54.0 / 21.26 | 56.0 / 22.05 | 58.0 / 22.83 | 60.0 / 23.62 | 64.0 / 25.20 |
| Head tube length (cm / in) | 9.5 / 3.74 | 10.0 / 3.94 | 11.0 / 4.33 | 12.5 / 4.92 | 14.0 / 5.51 | 16.0 / 6.30 | 18.0 / 7.09 | 20.0 / 7.87 |
| Head tube angle (degree) | 71 | 71.5 | 72 | 72.5 | 73 | 73 | 73.5 | 74 |
| Seat tube angle (degree) | 75.5 | 74 | 73.5 | 73.5 | 73 | 73 | 72.5 | 72.5 |
| BB drop (cm / in) | 7.0 / 2.76 | 7.0 / 2.76 | 6.5 / 2.56 | 6.5 / 2.56 | 6.5 / 2.56 | 6.5 / 2.56 | 6.5 / 2.56 | 6.5 / 2.56 |
| Chainstay length (cm / in) | 42.5 / 16.73 | 42.5 / 16.73 | 42.5 / 16.73 | 42.5 / 16.73 | 42.5 / 16.73 | 42.5 / 16.73 | 42.5 / 16.73 | 42.5 / 16.73 |
| Fork length axle to crown (cm / in) | 40.0 / 15.75 | 40.0 / 15.75 | 40.0 / 15.75 | 40.0 / 15.75 | 40.0 / 15.75 | 40.0 / 15.75 | 40.0 / 15.75 | 40.0 / 15.75 |
| Fork offset (cm / in) | 5.0 / 1.97 | 5.0 / 1.97 | 5.0 / 1.97 | 5.0 / 1.97 | 4.0 / 1.57 | 4.0 / 1.57 | 4.0 / 1.57 | 4.0 / 1.57 |
| Wheelbase (cm / in) | 99.3 / 39.09 | 99.4 / 39.13 | 100.7 / 39.65 | 101.8 / 40.08 | 101.2 / 39.84 | 102.7 / 40.43 | 103.6 / 40.79 | 105.0 / 41.34 |
Specs
| Frame | Chromoly steek Surly Midnight Special Frame |
|---|---|
| Fork | Midnight Special - 1-1/8" threadless Chromoly fork, 12 x 100mm Thru-Axle |
* Subject to change without notice.
