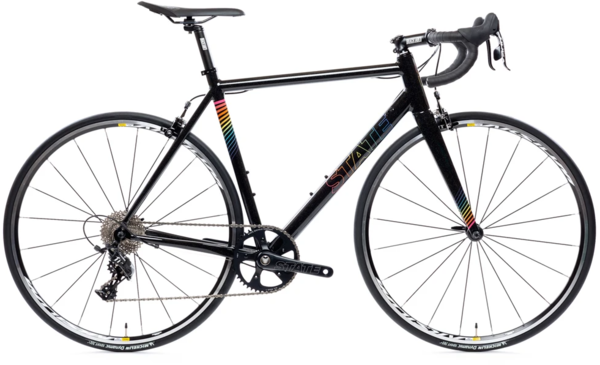

State Bicycle Co. Undefeated Road Apex - 2020

State Bicycle Co. Undefeated Road Apex
  • Color: Black Prism
$1,399.99
Color:
Black Prism
Please select options

Details

Get off the track and out of the city on the Undefeated Road—featuring 7005 Double-Butted Aluminum tubing, an oversized tapered head tube, and an Essor USA full carbon fork that come together to create a stiff, responsive, and fast ride. The Undefeated Road complete build features the SRAM Apex 1 groupset, offering a simplified 1x11 drivetrain. Paired with an 11-32T Cassette, the Undefeated Road provides a gear range to meet any challenge on the road. SRAM DoubleTap shifters provide smooth, tactile shifting, and the Mavic Aksium with sealed cartridge bearing hubs glide over the road ahead.

bike frame with labeled dimensions
Bike Sizes:
49cm52cm55cm58cm62cm
A. Reach 380mm 384mm 388mm 397mm 406mm
B. Stack 523mm 544mm 565mm 584mm 605mm
C. Standover 738mm 762mm 786mm 809mm 839mm
D. Effective Top Tube 535mm 545mm 555mm 570mm 585mm
E. Head Tube Angle 72° 72.5° 72.5° 73° 73.5°
F. Head Tube Length 120mm 140mm 160mm 180mm 200mm
G. Seat Tube Angle 74.5° 74° 74° 73.5° 73.5°
H. Seat Tube Length 490mm 520mm 550mm 580mm 620mm
I. Bottom Bracket Height 262mm 262mm 262mm 262mm 262mm
J. Bottom Bracket Drop 73mm 73mm 73mm 73mm 73mm
K. Fork Rake/Offset 45mm 45mm 45mm 45mm 45mm
M. Wheelbase 972mm 978mm 983.5mm 999mm 1008.5mm
O. Chainstay Length 405mm 405mm 405mm 405mm 405mm

Specs

Frame 7075 Aluminum, Double Butted, T6 Heat Treated, 1 1/2" to 1 1/8" Tapered Headtube
Fork Full Carbon Fork and Steerer, 1 1/2" to 1 1/8" Tapered Steerer
Wheels Mavic Aksium, 700c S6000 Aluminum Wheel Set, Profile Rim Depth: 21mm
Hubs Sealed Cartridge Bearing, Spacing: F: 100mm / R: 130mm, Quick Release
Spokes Steel, Front Lacing: Radial, Rear Lacking: Radial non-drive side &, Crossed 2 drive side
Tires Michelin Dynamic Sport, 700c x 25, Suggested Max Tire F/R: 28mm
Bottom Bracket PF BB86
Crankset Forged 7075 Aluminum, Crank Arm Length: Sizes 49cm, 52cm, 55cm: 170mm, Sizes 58cm, 62cm: 175mm
Chainrings Forged 6061 Aluminum, 46T, 110 BCD
Shifters SRAM Apex 11 Speed
Rear Derailleur SRAM Apex 1 Long Cage, 11 Speed
Cassette/Freewheel Sunrace 11-32T, 11 Speed
Chain SRAM PC1130 11 Speed
Brakes SRAM Apex Caliper
Handlebars Double Butted Aluminum, Width: 420mm, Drop/Reach: 120mm / 75mm
Stem Forged Aluminum, Clamp Diameter: 31.8mm, Length: 90mm, Rise: +/- 7°
Headset FSA #42 ACB
Seatpost Aluminum, Diameter: 31.6mm, Length: 300mm
Saddle Polyurethane, Steel Rails
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black Prism / 49cm 796201630763 42-7005-APX-049
Black Prism / 52cm 796201630770 42-7005-APX-052
Black Prism / 55cm 796201630787 42-7005-APX-055 210000037827
Black Prism / 58cm 796201630794 42-7005-APX-058 210000037828
Black Prism / 62cm 796201630800 42-7005-APX-062 210000037826
