State Bicycle Co. 4130 Fixed Gear/Single-Speed - 2020

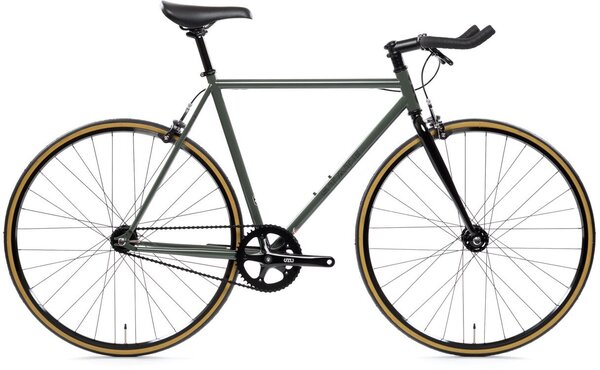

State Bicycle Co. 4130 Fixed Gear/Single-Speed
  • Color: Van Damme
  • Color: Van Damme
  • Color: Van Damme
  • Color: Sokol
  • Color: Sokol
  • Color: Sokol
  • Color: Army Green
  • Color: Army Green
  • Color: Army Green
  • Color: Perplexing Purple
  • Color: Perplexing Purple
  • Color: Perplexing Purple
  • Color: Matte Black
  • Color: Matte Black
  • Color: Matte Black
Please select options

Details

The 4130 Steel Line earned its namesake from the double-butted 4130-grade chromoly steel used on the frame and fork that maximizes strength without making compromises on weight. Internal cable routing, seat stay rack mounts, water bottle cage mounts, a flip-flop hub, and integrated chain tensioners provide versatility while maintaining the clean aesthetic State Bicycle Co. is known for. Drilled high-flange hubs, an open faceplate stem, and the CNC'd seat post clamp not only look great but also help to shave some additional weight.

The latest 4130 Steel Line models feature a subtle but stylish 'STATE' logo on the down tube and an updated 'SBC' head tube logo. The ability to customize your bike by selecting your handlebar style and wheel set all combine to make sure you have a bike as unique as you are.

bike frame with labeled dimensions
Bike Sizes:
46cm49cm52cm55cm59cm62cm
A. Reach 368mm 368mm 372mm 377mm 386mm 410mm
B. Stack 505mm 514mm 520mm 536mm 569mm 589mm
C. Standover 734mm 745mm 759mm 780mm 816mm 840mm
D. Effective Top Tube 513mm 515mm 517mm 538mm 554mm 590mm
E. Head Tube Angle 71.5° 71.5° 71° 71° 71° 73.5°
F. Head Tube Length 105mm 105mm 105mm 115mm 145mm 160mm
G. Seat Tube Angle 74° 74° 74° 73° 73° 75°
H. Seat Tube Length 460mm 490mm 520mm 550mm 590mm 620mm
I. Bottom Bracket Height 270mm 270mm 270mm 270mm 270mm 270mm
J. Bottom Bracket Drop 60mm 60mm 60mm 60mm 60mm 60mm
K. Fork Rake/Offset 45mm 45mm 45mm 45mm 45mm 45mm
M. Wheelbase 978mm 980mm 988mm 995mm 1007mm 1010mm
O. Chainstay Length 412mm 412mm 412mm 412mm 412mm 405mm

Specs

Frame Double-Butted, TIG Welded, 4130 Chromoly Steel, Die Cast Dropouts, Integrated Chain Tensioners, Internal Brake Cable Routing
Fork 4130 Chromoly Steel, 1 1/8 threadless steerer
Wheels 700c Aluminum Wheel Set, Deep V Rim Depth: 40mm, Lo Pro Rim Depth: 14mm
Hubs Sealed Bearing, Flip-Flop Hub, 16T Freewheel and Fixed Cog, Spacing: F: 100mm / R: 120mm, Bolts: F: M10 / R: M10
Spokes 14G Stainless Steel, 3 Cross Pattern
Tires CST Brand, 700c x 25, Suggested Max Tire: 28mm
Bottom Bracket Sealed Cartridge, JIS Square Taper, English Threaded, 68mm x 103mm
Crankset Forged 6061 Aluminum, Crank Arm Length: 170mm
Chainrings Steel, 46T, 130 BCD
Chain YAB Chain
Brakes Dual Pivot, Forged Alloy, Clamp Diameter: 23.8mm
Handlebars Aluminum, Bullhorn: 420mm, Drop: 450mm, Riser: 570mm
Stem Steel, Clamp Diameter: 25.4mm, Length: 90mm, Rise: +/- 7°
Headset 1 1/8 threadless
Seatpost Aluminum, Diameter: 27.2mm, Length: 300mm
Saddle Polyurethane, Steel Rails
Pedals Wellgo Brand Alloy

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Van Damme / Bullhorn Bar / 52cm 796201629507 43-VNDM-052-BHN 210000039660
Sokol / Riser Bar / 52cm 796201629743 43-SOKL-052-RIS 210000038156
Sokol / Drop Bar / 59cm 796201629828 43-SOKL-059-DRP 210000039545
Sokol / Riser Bar / 62cm 796201629774 43-SOKL-062-RIS 210000039546
Army Green / Riser Bar / 46cm 796201630084 43-ARMG-046-RIS 210000036092
Army Green / Bullhorn Bar / 49cm 796201630039 43-ARMG-049-BHN 210000038141
Army Green / Riser Bar / 49cm 796201630091 43-ARMG-049-RIS 210000036096
Army Green / Bullhorn Bar / 52cm 796201630046 43-ARMG-052-BHN 210000036100
Army Green / Riser Bar / 52cm 796201630107 43-ARMG-052-RIS 210000036098
Army Green / Bullhorn Bar / 55cm 796201630053 43-ARMG-055-BHN 210000036102
Army Green / Bullhorn Bar / 59cm 796201630060 43-ARMG-059-BHN 210000039654
Army Green / Drop Bar / 59cm 796201630183 43-ARMG-059-DRP 210000039653
Army Green / Riser Bar / 59cm 796201630121 43-ARMG-059-RIS 210000035915
Army Green / Drop Bar / 62cm 796201630190 43-ARMG-062-DRP 210000036108
Army Green / Riser Bar / 62cm 796201630138 43-ARMG-062-RIS 210000038145
Perplexing Purple / Bullhorn Bar / 52cm 796201629866 43-PLEX-052-BHN 210000039549
Perplexing Purple / Bullhorn Bar / 59cm 796201629880 43-PLEX-059-BHN 210000039550
Matte Black / Bullhorn Bar / 46cm 796201631388 43-MBMB-046-BHN 210000038147
Matte Black / Riser Bar / 46cm 796201631449 43-MBMB-046-RIS 210000035919
Matte Black / Riser Bar / 49cm 796201631456 43-MBMB-049-RIS 210000038149
Matte Black / Bullhorn Bar / 52cm 796201631401 43-MBMB-052-BHN 210000038152
Matte Black / Riser Bar / 52cm 796201631463 43-MBMB-052-RIS 210000038154
Matte Black / Bullhorn Bar / 55cm 796201631418 43-MBMB-055-BHN 210000035921
Matte Black / Bullhorn Bar / 59cm 796201631425 43-MBMB-059-BHN 210000038741
Matte Black / Riser Bar / 59cm 796201631487 43-MBMB-059-RIS 210000035923
Matte Black / Bullhorn Bar / 62cm 796201631432 43-MBMB-062-BHN 210000036494
