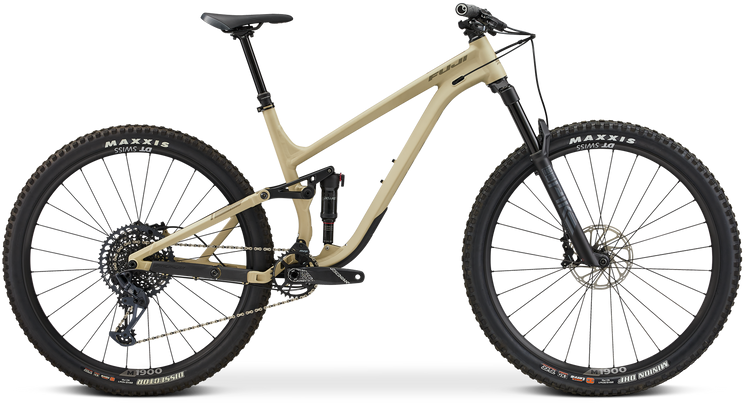

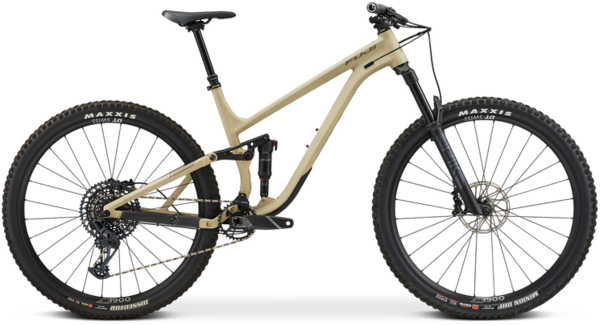

Fuji Rakan 29 1.1 - 2022
$3,999.00 - $3,999.99
Details
The Rakan might be the most efficient pedaling trail bike on the market, with 120mm of MLink® Suspension Design technology, modern geometry and 29-inch wheels make it the obvious choice if you're looking for a do-it-all mountain bike.
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Bike Size | 15" | 17" | 19" | 21" |
| Seat Tube, Center To Top (mm) | 380 | 420 | 458 | 495 |
| Top Tube, Effective (mm) | 590 | 618 | 646 | 668.5 |
| Head Tube Length (mm) | 100 | 110 | 120 | 130 |
| Seat Tube Angle | 77° | 76.5° | 76° | 76° |
| Head Tube Angle | 65° | 65° | 65° | 65° |
| Chainstay Length (mm) | 431 | 431 | 431 | 431 |
| Wheelbase (mm) | 1194.9 | 1219 | 1243.3 | 1267.5 |
| Bottom Bracket Drop (mm) | 32 | 32 | 32 | 32 |
| Fork Offset (mm) | 42 | 42 | 42 | 42 |
| Stack (mm) | 607.9 | 616.9 | 626 | 635 |
| Reach (mm) | 450 | 470 | 490 | 510 |
| Standover (mm) | 748.3 | 766.5 | 762.4 | 783 |
| Stem (mm) | 40 | 40 | 40 | 40 |
| Handlebar Width (mm) | 780 | 780 | 780 | 780 |
| Crank (mm) | 170 | 170 | 170 | 170 |
| Wheel Size | 29" | 29" | 29" | 29" |
| Seat Post Diameter (mm) | 31.6 | 31.6 | 31.6 | 31.6 |
| Size | Small | Medium | Large | X-Large |
|---|---|---|---|---|
| Inch | 5'3"-5'7" | 5'6"-5'10" | 5'9"-6'1" | 6'0"-6'4" |
| CM | 160 - 170 | 168 - 178 | 175 - 185 | 183 - 193 |
Specs
| Frame | Fuji A6-SL super-butted alloy front and rear triangle, Enduro Max sealed cartridge bearings, MLink patented suspension system, Boost 148x12mm, UDH, 120mm |
|---|---|
| Fork | RockShox Pike Select 29 DebonAir, tapered alloy steerer, Boost 110x15mm, 44mm offset, 140mm |
| Rear Shock | RockShox Deluxe Select+ RL |
| Wheels | WTB Speedterra ST i30 TCS 2.0 wheelset, 32H |
| Tires | Maxxis Minion DHF, 29" x 2.50" WT, 3C Maxx Terra, 60tpi, EXO, Tubeless Ready, folding, Maxxis Dissector, 29" x 2.40" WT, 3C Maxx Terra, 60tpi, EXO, Tubeless Ready, folding |
| Bottom Bracket | SRAM DUB, threaded |
| Crankset | Truvativ Descendant, 32T |
| Shifters | SRAM GX Eagle, 1 x 12-speed |
| Rear Derailleur | SRAM GX Eagle |
| Cassette/Freewheel | SRAM XG-1275, 10-52T |
| Chain | SRAM GX Eagle |
| Brakes | SRAM G2 R |
| Rotors | 180mm rotors |
| Brake Levers | SRAM G2 R |
| Handlebars | Race Face Aeffect R Riser Bar, alloy, 20mm rise, 780mm |
| Tape/Grips | Ergon GA20, Lock on |
| Stem | Race Face Aeffect R, alloy, +0° rise |
| Headset | FSA 1 1/8" - 1.5", sealed cartridge bearings |
| Seatpost | Crankbrothers Highline 3 dropper, 31.6mm, 15" - 125mm travel, 17, 19"- 150mm travel, 21" - 170mm travel, Highline Premium Ball Socket Lever |
| Saddle | Fizik Alpaca Terra X5 |
| Accessories & Extras | MRP 1X Chainguide |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Matte Beige / Small / 29-inch | 785749221236 | 19222020315 | 210000047847 |
| Matte Beige / Medium / 29-inch | 785749221243 | 19222020317 | 210000047848 |
| Matte Beige / Large / 29-inch | 785749221250 | 19222020319 | 210000047849 |
| Matte Beige / X-Large / 29-inch | 785749221267 | 19222020321 | 210000047850 |
